Spray Park Features and Equipment - Contractor Sales 877-795-0615           100% American Made Quality




 *Packages listed below may vary slightly to comlpy with local Department of Health standards and guidlines.
**Enclosure exteriors available in Forest Green or Tan

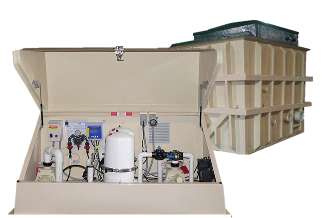

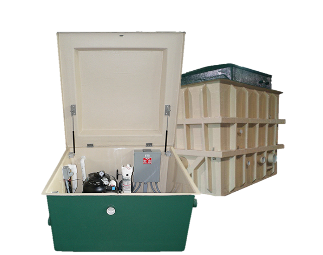

WTPV-60 Series for Kinder Pads and Small Splash Pads to 60 gpm

All main components Pentair® NSF certified and pre-assembled into FRP locking above grade enclosure. Electrical panel included and ready for connection. Systems include polymer reservoir.

Model Max Flow
 Chemical Type Tank Size Price
WTPV-40 40 gpm erosion feeder 550 gallons call
WTPV-50 50 gpm erosion feeder 550 gallons call
TPV-60 60 gpm erosion feeder 650 gallons call

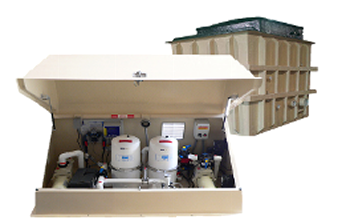

WTPV-100 Series for Splash Pads and Small Spray Parks 60 to 100 gpm

All main components Pentair® NSF certified and pre-assembled into FRP locking above grade enclosure. Electrical panel included and ready for connection. Systems include polymer reservoir.

Model Max Flow
 Chemical Type Tank Size Price
WTPV-70 70 gpm automatic 650 gallons call
WTPV-80 80 gpm automatic 750 gallons call
WTPV-100 100 gpm automatic 750 gallons call

WTPV-150 Series for Splash Pads and Small Spray Parks 100 to 150 gpm

All main components Pentair® NSF certified and pre-assembled into FRP locking above grade enclosure. Electrical panel included and ready for connection. Includes fiberglass reservoir.

Model Max Flow
 Chemical Type Tank Size Price
WTPV-120 120 gpm automatic 1000 gallons call
PV-140 140 gpm automatic 1000 gallons call
WTPV-150 150 gpm automatic 1000 gallons call

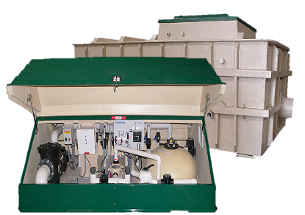

WTPV-200 Series for Splash Pads and Spray Parks 150 to 200 gpm

All main components Pentair® NSF certified and pre-assembled into FRP locking above grade enclosure. Electrical panel included and ready for connection. Includes fiberglass reservoir.

Model Max Flow
 Chemical Type Tank Size Price
WTPV-160 160 gpm automatic 1250 gallons call
TPV-180 180 gpm automatic 1500 gallons call
TPV-200 200 gpm automatic 1500 gallons call

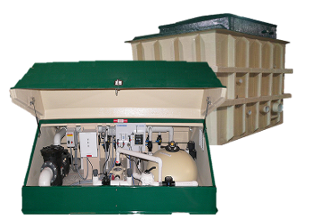

WTPV-400 Series for Splash Pads and Spray Parks 220 to 400 gpm

All main components Pentair® NSF certified and pre-assembled into FRP locking above grade enclosure. Electrical panel included and ready for connection. Systems include fiberglass reservoir.

Model Max Flow
 Chemical Type Tank Size Price
WTPC-220 220 gpm automatic 2000 gallons call
WTPC-250 250 gpm automatic 2000 gallons call
PC-280 280 gpm automatic 2400 gallons call
WTPC-320 320 gpm automatic 2400 gallons call
WTPC-350 350 gpm automatic 2400 gallons call
WTPC-380 380 gpm automatic 3000 gallons call
WTPC-400 400 gpm automatic 3000 gallons call

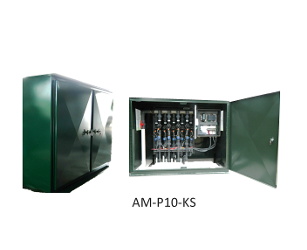

Enclosed Automation Kiosks

Each includes PLC controller as listed, stainless manifold header, PGA or PEB solenoid valves, schd 80 piping, unions, valves and enclosure. All low voltage wiring complete and ready for line power.

Model PLC
 Header Valves/Zones Price
AM-V4-KS Value Series 3" SS 4 call
AM-V6-KS Value Series 3" SS 6 call
AM-V8-KS Value Series  4" SS
 8 call
V10-KS Value Series 4" SS 10 call
M-V12-KS  Value Series  6" SS 12 call
AM-P6-KS Premium Series 3" SS
 6 call
AM-P8-KS Premium series 4" SS
 8 call
AM-P10-KS Premium series 4" SS
 10 call
AM-P12-KS Premium Series 6" SS
 12 call
AM-P14-KS Premium Series 6" SS
 14 call
AM-P18-KS Premium Series 6" SS
 18 call

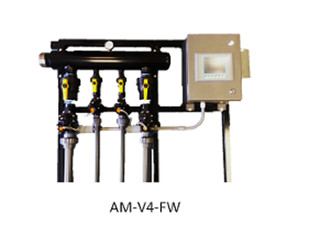

Wall/Floor Mount Automation Centers

Each includes PLC controller as listed, stainless manifold header, PGA or PEB solenoid valves, schd 80 piping and true unions, adjusting valves. All low voltage wiring complete and ready for line power.

Model PLC
 Header Valves/Zones Price
AM-V4-FW Value Series 3" SS 4 call
AM-V6-FW Value Series 3" SS 6 call
AM-V8-FW Value Series  4" SS
 8 call
AM-V10-FW Value Series 4" SS 10 call
AM-V12-FW  Value Series  6" SS 12 call
AM-P6-FW Premium Series 3" SS
 6 call
AM-P8-FW Premium series 4" SS
 8 call
AM-P10-FW Premium series 4" SS
 10 call
AM-P12-FW Premium Series 6" SS
 12 call
AM-P14-FW Premium Series 6" SS
 14 call
AM-P18-FW Premium Series 8" SS
 18 call
